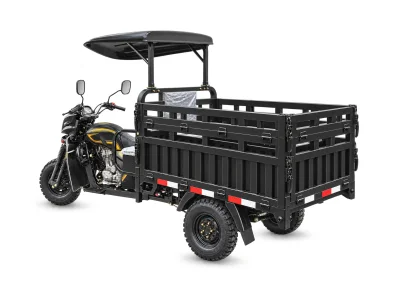

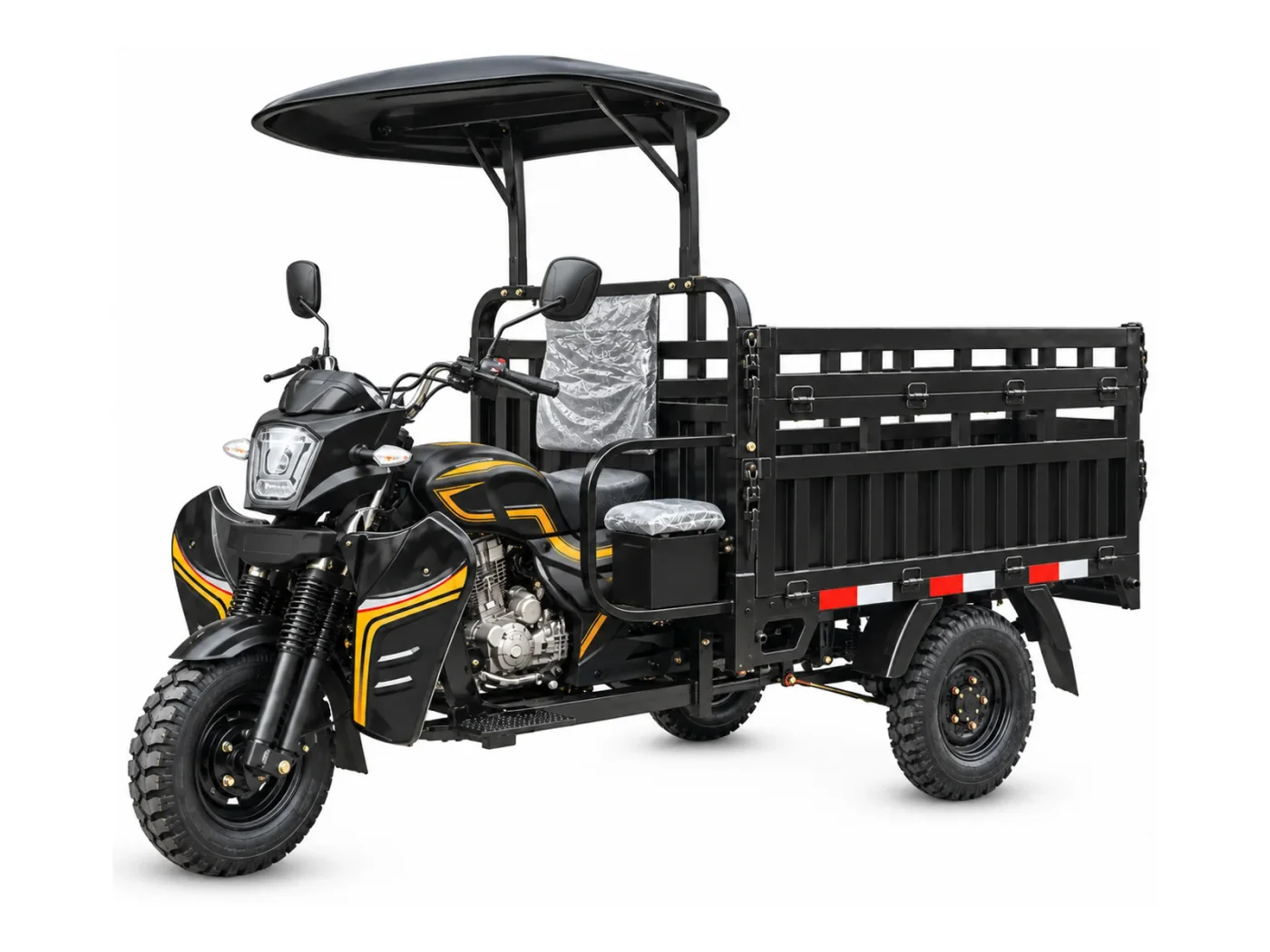

Model Z-200ZH-A
Q2+L8
Maximum payload 800 kg · 3350 × 1430 × 1600 mm
View the product images and complete configuration for Q2+L8 · Z-200ZH-A.
Specifications and equipment from the supplied model sheet. Confirm the final configuration and packing method with your quotation.
EnquiryVehicle specifications
| Car name | Q2+L8 |
|---|---|
| Model | Z-200ZH-A |
| Overall dimensions | 3350 × 1430 × 1600 mm |
| Wheelbase | 2250 mm |
| Minimum ground clearance | 170 mm |
| Seat height | 920 mm |
| Kerb weight | 430 kg |
| Fuel tank | 20 L |
| Top speed | 60 km/h |
| Maximum payload | 800 kg |
| Units per 40HQ (packing method to confirm) | 45 |
Configuration and equipment

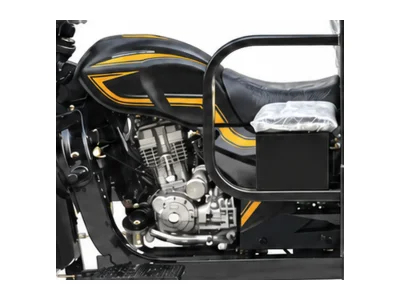

| Engine | Zongshen Jinzhan 200, water-cooled, supplier grade 18 |
|---|---|
| Cargo bed and platform | Truck-style cargo bed 1.8 × 1.3 m |
| Frame | Frame main beam 50 × 100 |
| Rear axle | ChuanYu Jialiwang full-floating rear axle, 220 hub |
| Leaf springs | Internal 6+3 leaf springs |
| Front suspension | Type 09 suspension |
| Tires | Yuanxing 5.0-12 tube-type tires; spare included |
| Battery | 12 V / 18 Ah |
| Included tools | Mechanical jack, wheel wrench and onboard tools |
